AERMACCHI M346 (MASTER)
Full composite
OUR M346 AT THE JET POWER 2011
MAIDEN FLIGHT
BUILDING INSTRUCTIONS
(PDF)
Nuovo modello di nostra progettazione,Per turbine da 12-16 kg di spinta,Fusoliera
in fibra di vetro rinforzata in carbonio, ali,timone e pianetti in sandwich fibra/airex.Tutte
le ordinate incollate in fabbrica,alettoni e flap con Elastoflap,Capottina
e coperchio turbina già montati.Facile accesso alla turbina dal vano superiore.Ali divisibili in due pezzi
con apposite baionette in carbonio. Baionetta timone e profondità in carbonio.Nel
kit sono forniti: Serbatoio in fibra di vetro,condotti anteriori,tiranteria.
- New model for a single turbine up to 160n. Epoxy fuselage carbon
reinforced,
- Vacuum sandwich airex/fiber Wings,fin and elevator. All the orderly already
fitted in the factory. Elastoflap aileron and flap. Canopy and
turbine cover ready to use.Easy access to turbine and electronic trought the
large vane(turbine cover). Dismountable:wings,fin. Carbon rod
for the wing ,fin and elevator. Inlcuded in the kit:fuel tank,inlect duct,hardware.
Neuestes Modell aus
unserer Produktion, für Turbinen von 12 - 16 kg Schub, der Rumpf ist in Voll-GFK
ausgeführt + verstärkt mit CFK, Tragflächen und Leitwerke in unserer bewährten
Sandwich-Bauweise: GFK / AIREX. Alle Rippen und Spanten werksseitig bereits
professionell eingeklebt, Querruder und Klappen in moderner
ELASTOFLAP-Ausführung, Cockpithaube und Turbinendeckel bereits montiert, somit
leichter Zugang zur Turbine selbst - obenseitig! Tragflächen und Leitwerke in
teibarer Ausführung mit CFK - Steckverbindungen. Vorderer Konus + beide hinteren
Ausgänge demontierbar.
Der Bausatz enthält:
neben allen bereits beschriebenen und KOMPLETT lackierten Teilen einen GFK-Tank,
die vorderen internen Luftführungen, alle notwendigen Bowdenzüge, eine
ausführliche, bebilderte Bauanleitung
DIMENSIONI/DIMENSIONS/ABMESSUNGEN:
SCALA 1:5
Ap.Alare/wingspan/Spannweite :1950mm
Lunghezza/lenght/Laenge :2300mm
Peso/weight/Gewich 12-13 kg ready to
fly(DRY)
€ 1800,00 (già verniciato,already painted)
FACTORY CHECK
|
PRODUCTION SERIE |
|
PRODUCTION SERIE |
PRODUCTION SERIE |
PRODUCTION SERIE |
PRODUCTION SERIE |
 |
 |
 |
 |
ELEVATORS WORK WITH BEARINGS
|
 |

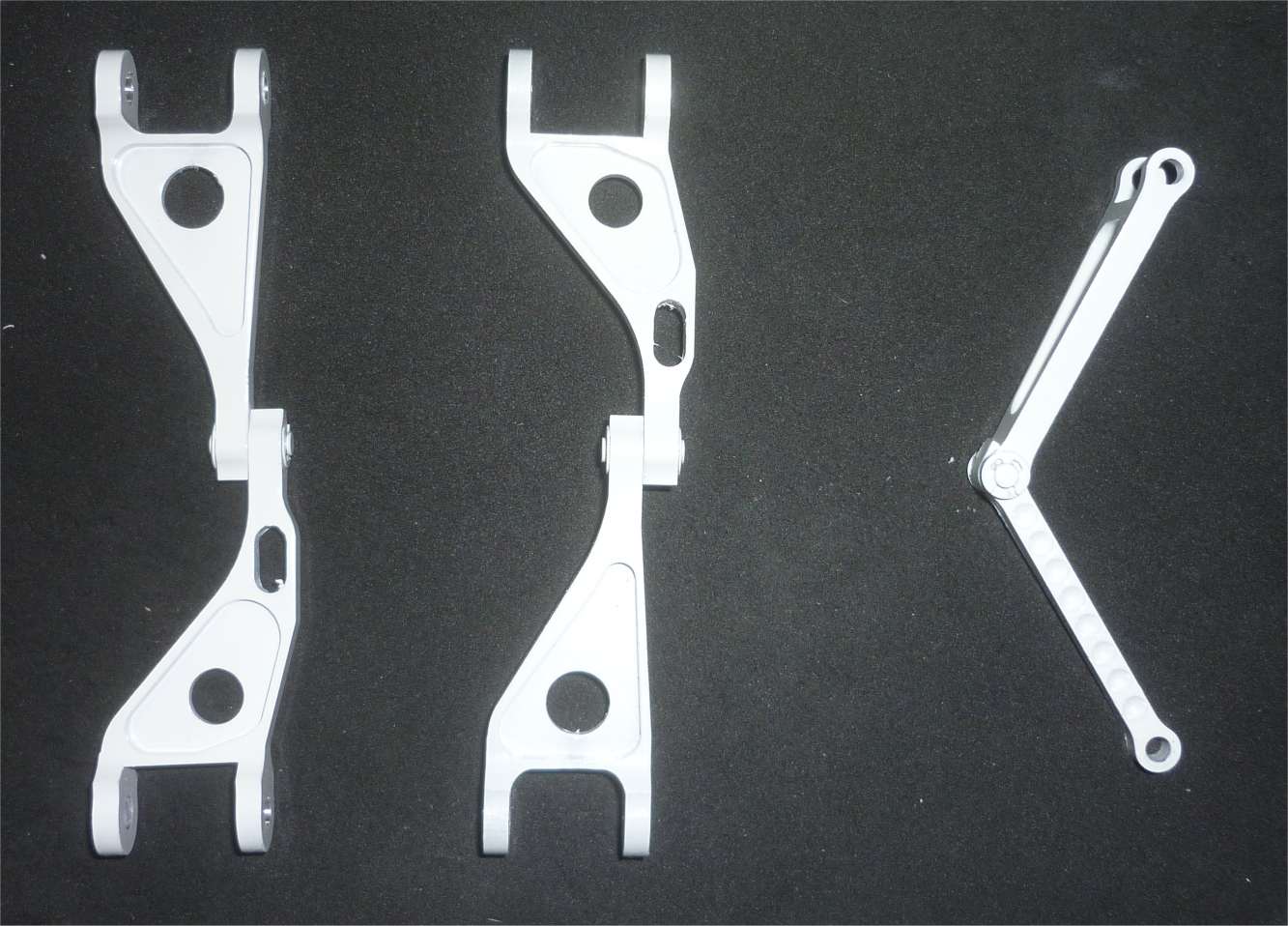

SCALE LEGS WITH SCALE RIMS AND TIRES
|

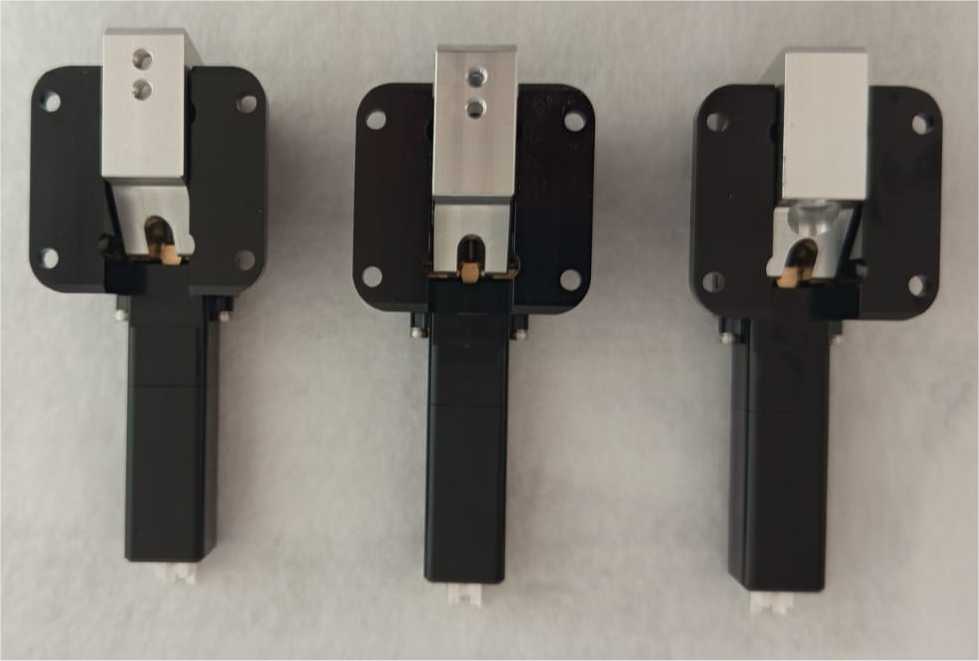

ELECTRIC LANDING SET
|
HARWDARE INCLUDED(click on the photo to enlarge) |
SCALE RIM (click on the photo to enlarge)
|

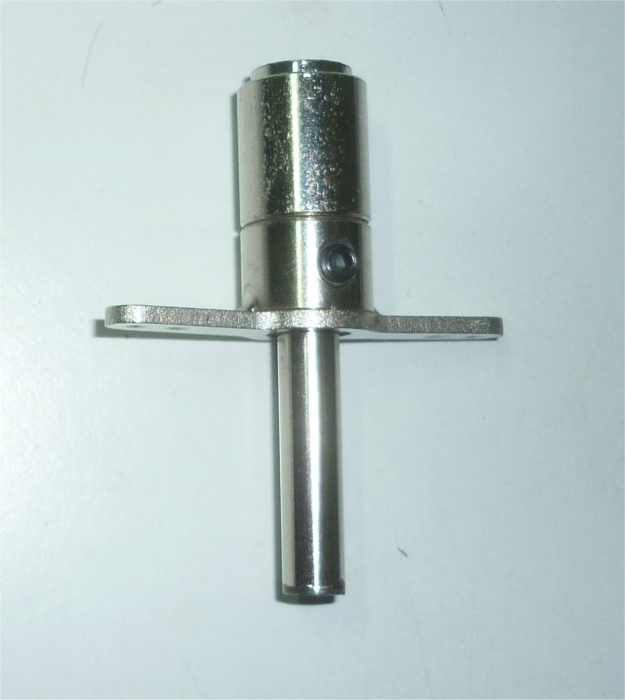

NOSE RETRACT AREA REINFORCED WITH CARBON
|
ELECTRIC BRAKE |
SCALE TIRES |
 FUEL PROBE INCLUDED IN THE
KIT
|

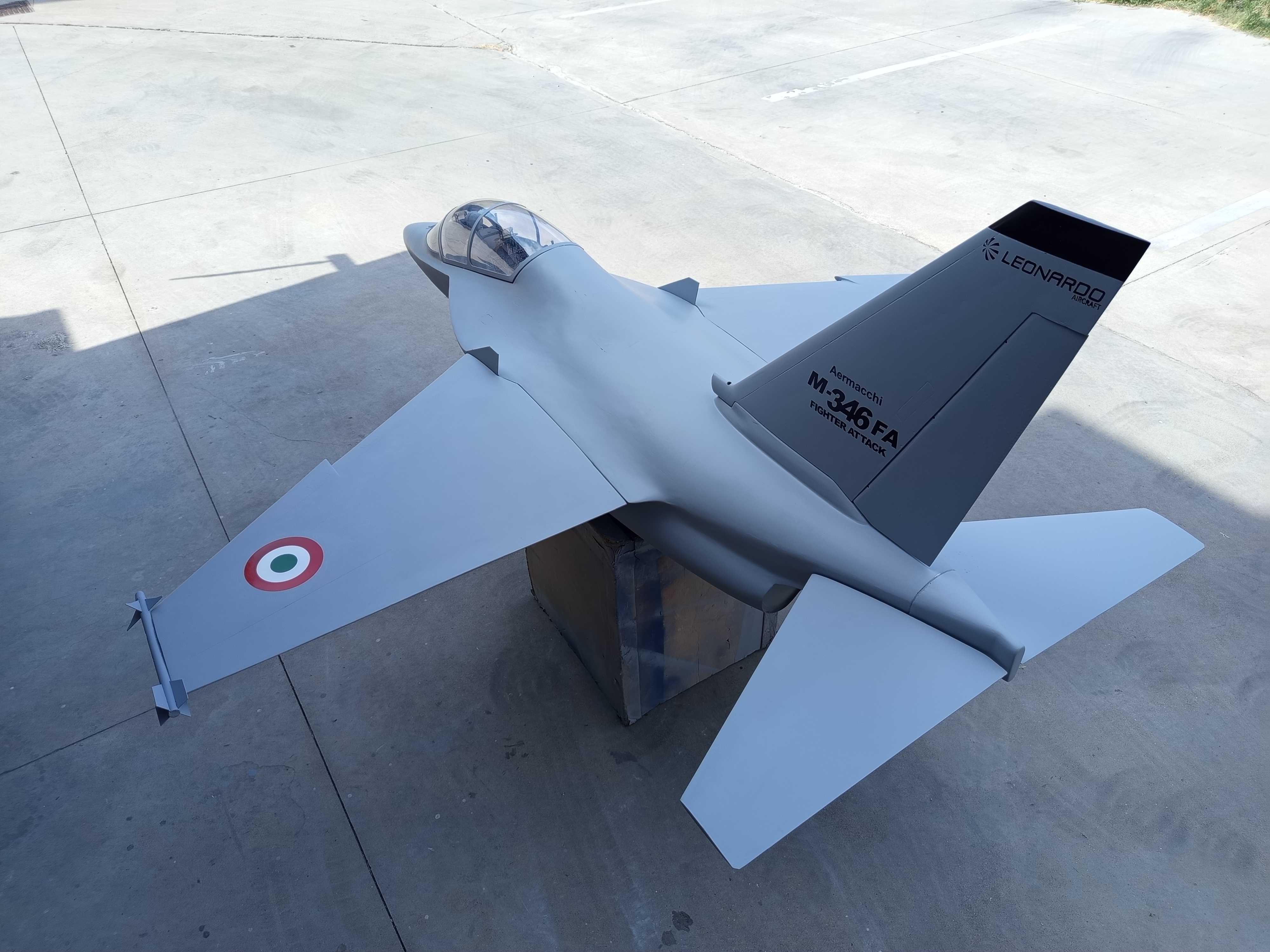

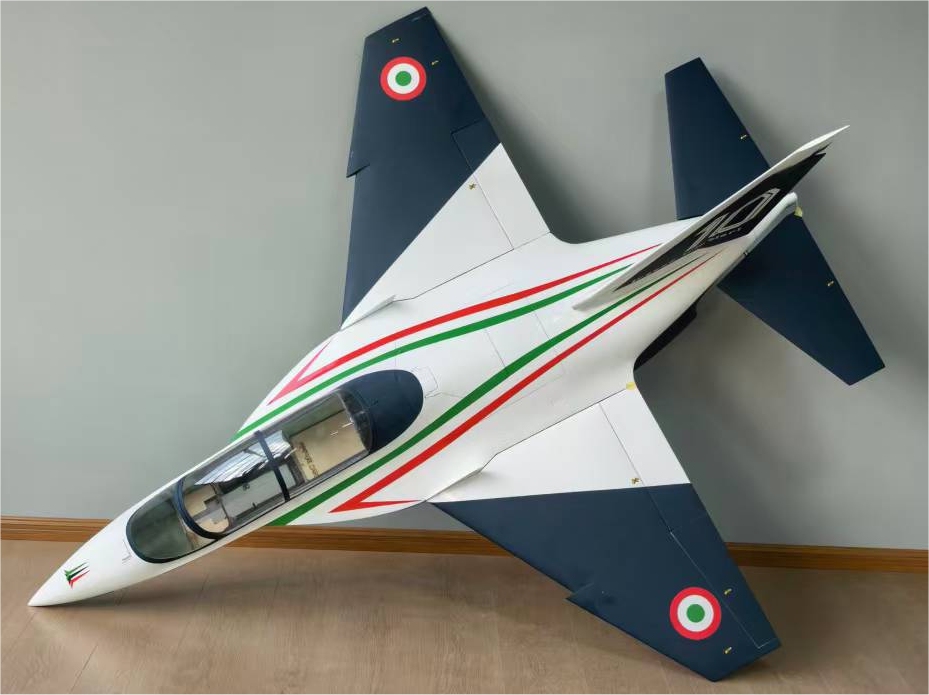

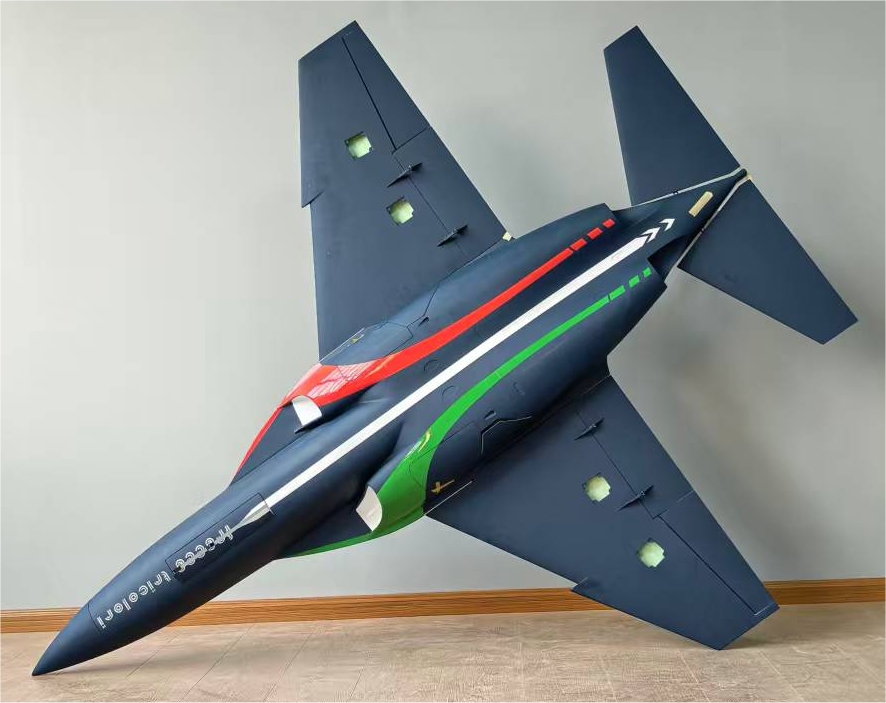

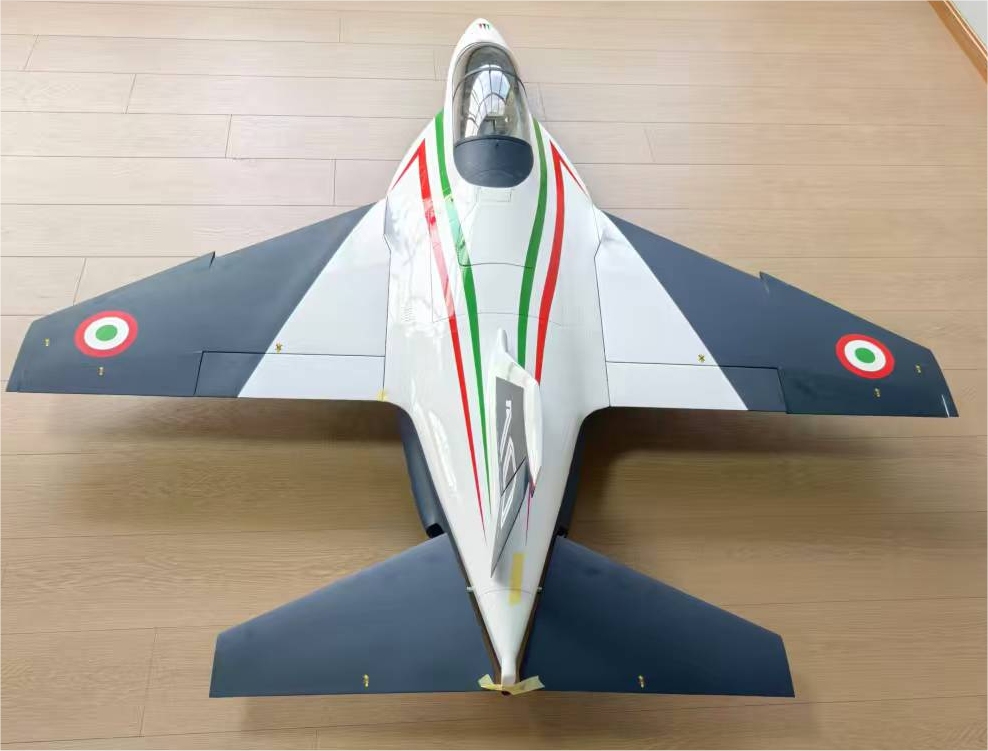

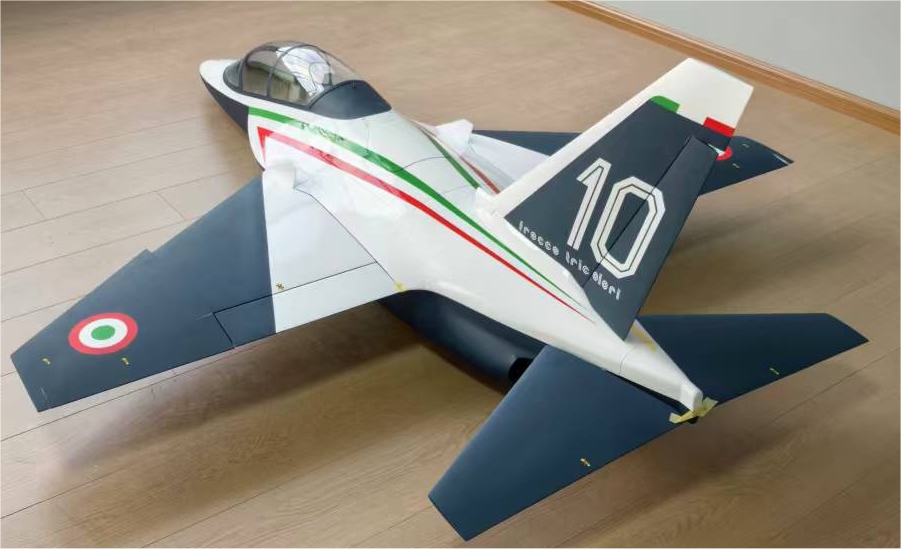

3 DIFFERENT COLOR SCHEME
GREY SCHEME
METALLICH RED SCHEME
BLU SCHEME
ACCESSORI/ACCESSORY/ZUBEHOER:
Condotto di scarico inox doppia
camera/inox bifurcated tailpipe double/Inox
Ausgang-Leitung mit doppelte Kammer
Chinese inox dual pipe € 150,00
German inox dual pipe € 250,00
COMPLETE ELECTRIC LANDING SET INCLUDE:
ELECTRIC RETRACTS, SCALE LEGS, WHEEL WITH ELECTRIC BRAKES,ELECTRONIC CONTROL
UNIT(BATTERY NOT INCLUDED)
€ 900,00
ELECTRONIC CONTROL UNIT INCLUDED
IN THE LANDING SET
"ELCU"
FEATURES:
- CONTROL LANDING GEAR UP/DOWN
- MAIN ELECTRIC BRAKES
- GEAR DOORS(SERVOS OR AIR VALVE CAN BE INSTALLED)
- WORK WITH 2 CELLS LIPO BATTERY
- PROGRAMMABLE
ELCU
INSTRUCTION (PDF )
COCKPIT
€ 450,00
