EUROFIGHTER EF2000
Full composite
Nuovo modello di nostra progettazione,Per turbine da 12 kg di spinta,Fusoliera
in fibra di vetro rinforzata in carbonio, ali,timone e canard in sandwich fibra/airex.Tutte
le ordinate incollate in fabbrica,alettoni con Elastoflap,Capottina
e coperchio turbina gia' montati.Facile accesso alla turbina dal vano superiore.
Cono anteriore smontabile.Coni di uscita smontabili.Ali divisibili in due pezzi
con apposite baionette in carbonio. Baionetta timone e canard in carbonio.Portelli
carrelli gia' verniciati da installare.Nel
kit sono forniti: Serbatoio in fibra di vetro,condotto anteriore,tiranteria.Il
modello,essendo rivolto a modellisti esperti sia nella costruzione che nel
volo,non e' provvisto di istruzioni,forniamo esclusivamente indicazioni sul CG e escursioni delle parti mobili.Possibilita' di montare il tubo di scarico
dritto o biforcato.Decals non incluse.
- New EF2000 THYPOON for a single turbine up to 160n. Epoxy fuselage
reinforced with carbon,
- Vacuum sandwich airex/fiber Wings,fin and canard. All the orderly already
fitted in the factory. Elastoflap aileron. Canopy and
turbine cover ready to use.Easily access to turbine and electronic trought the
large vane(turbine cover). Dismountable:wings,fin,tail cone,nose. Carbon rod
for the wing and fin.Gear doors already painted but not installed. Included in the kit:fuel tank,inlect duct,hardware.Decals
not included
- Neuer Modell unsere Anfertigung fuer
Turbo-Antriebe 12 Kg. Schub.
- Rumpf in Glasfaser mit Kohlenfaser
verstaerkte Fiber. Fluegel,Leitwerk und
- Canard in Fiber-Airex Sandwich.
Rippen von Werk aus eingeklebt.
- Querklappen-Scharnier- Einbau
vorgefertigt. Kabinenhaube und Turbinen-Deckel
- bereits Montiert. Einfache Turbine
zugang von oben. Vorderer Konus demontierbar.
- Ausgaenge Konus (2Stueck hinten)
demontierbar. Teilbare Fluegeln 2 Stueck durch je
- 2 Kohlenfaser Bajonett . Leitwerk
und Canard auch durch Kohlenfaser Bajonett.
- In KIT inbegriffen:
- Glasfiber-Tank
- Vordere interne Luftleitungen
- Bowden.Decals nicht
enthalten
-
DIMENSIONI/DIMENSIONS/ABMESSUNGEN:
Ap.Alare/wingspan/Spannweite :1700mm
Lunghezza/lenght/Laenge :2200mm
Peso/weight/Gewich 12 kg ready to
fly(DRY)
euro
1800,00
C&C MODELS PROTOTYPE MAIDEN FLY
VIDEO ON
JET POWER 2010
VIDEO FROM A CUSTOMER
VIDEO ON YOU TUBE
VIDEO WITH JET ITALIA
KAIMAN 19
-
VIDEO WITH JET ITALIA
SPEED 13
-
INSTRUCTIONS
ACCESSORI/ACCESSORY/ZUBEHOER:
Condotto di scarico inox doppia
camera/inox bifurcated tailpipe double/Inox
Ausgang-Leitung mit doppelte Kammer
euro 280,00
Condotto di scarico inox doppia
camera/inox tailpipe double room/Inox
Ausgang-Leitung mit doppelte Kammer
euro 170,00
STRAIGHT OR VECTORIAL INOX PIPE PREDISPOSED,PARTS INCLUDED IN
THE KIT
-
LANDING GEAR kit include:
3 pcs ELECTRON ER40 EVO RETRACTS,
1 pcs ELECTRONIC
2 pcs MAIN WHEELS WITH ELECTRIC BRAKES made by us
1 pcs NOSE WHEEL
3 pcs SCALE LEGS made by us
euro 1100,00
only legs+wheels+brakes(electric)
euro 640,00
SCALE COCKPIT euro 350,00
- Missiles Kit euro 450,00
-

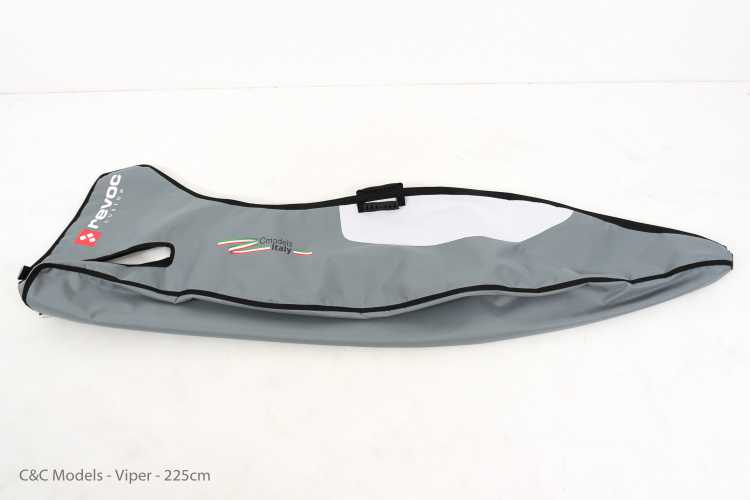

Revoc fuselage bag

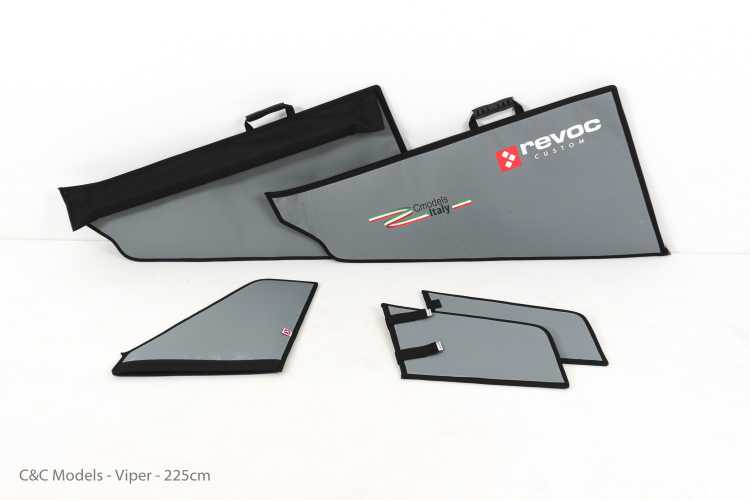

Revoc bag kit
ELASTOFLAP AILERON
CARBON REINFORCEMENT
