VIDEO FROM MR. ANDREAS
VIDEO
FROM GERMANY FRIEND
NEW MB339 2,95 MT WINGSPAN
FULL AIREX/FIBER SANDWICH
OUR MB339 2,95 MT ON JET POWER 2011 BEFORE FLIGHT DISPLAY
ME AND MY BEST FRIEND DANIEL ON JET POWER 2011 AFTER SUCCESFULL FLYGHT OF BIG
339
JOERG FROM GERMANY WITH OUR BIG MB339
DISMONTABLE WINGS (2 PCS)
DISMONTABLE FUSELAGE (2 PCS)
DISMONTABLE ELEVATOR (2PCS)
DISMONTABLE RUDDER
|
• Costruzione tuttofibra in sandwich di
Airex(ali,fusoliera,pianetti,parte mobile timone)
• Verniciato su
richiesta in diverse colorazioni
• Facile da assemblare
• Facile da
volare
• Motorizzabile con turbine p160
• Predisposizione per carrelli retrattili
• Predisposizione per supporto turbina
• Ali e pianetto smontabili
• Timone rimovibile
• Squadrette in vetronite in dotazione
• Serbatoio 5,4 litri in dotazione
|
• Airex-fiberglass Sandwich construction
• 3 paint
scheme on demand
• Easy to build
• Easy to fly
• Well for a
p160 turbine
• Preinstalled retracts support
• Preinstalled turbine support
• Removable wings and elevator
• Removable fin
• Hardware incluse
• 5,4 lt fiber fuel tank incluse
|
- Sandwich-Konstruktion in GFK / AIREX (Tragflächen,
Rumpf, alle Leitwerke)
Lackierung nach Wunsch!!
Leicht beim Zusammenbau - EINFACH zu fliegen!
Vorgesehen für eine Turbine P160
Vorbereitete Schächte für die EZFW
Vorbereiteter Turbineneinbau
Tragflächen und Leitwerke teilbar
Seiten-Leitwerk abnehmbar!
KOMPLETTER Bausatz mit u.a. Anlenkungen in VETRONITE + 5,4 Liter
GFK-Tank
Auf Grund der Größe unserer MB 339 von 2,95 m können wir die
Maschine nur auf Bestellung anbieten!
|
AERMACCHI MB 339A 2,95
MT
CARATTERISTICHE:
Ap.Alare/Wingspan: 2,95 mt
Lunghezza/Lenght :3,0 mt
Aiframe weight : 9 kg
Turbine: 160/200

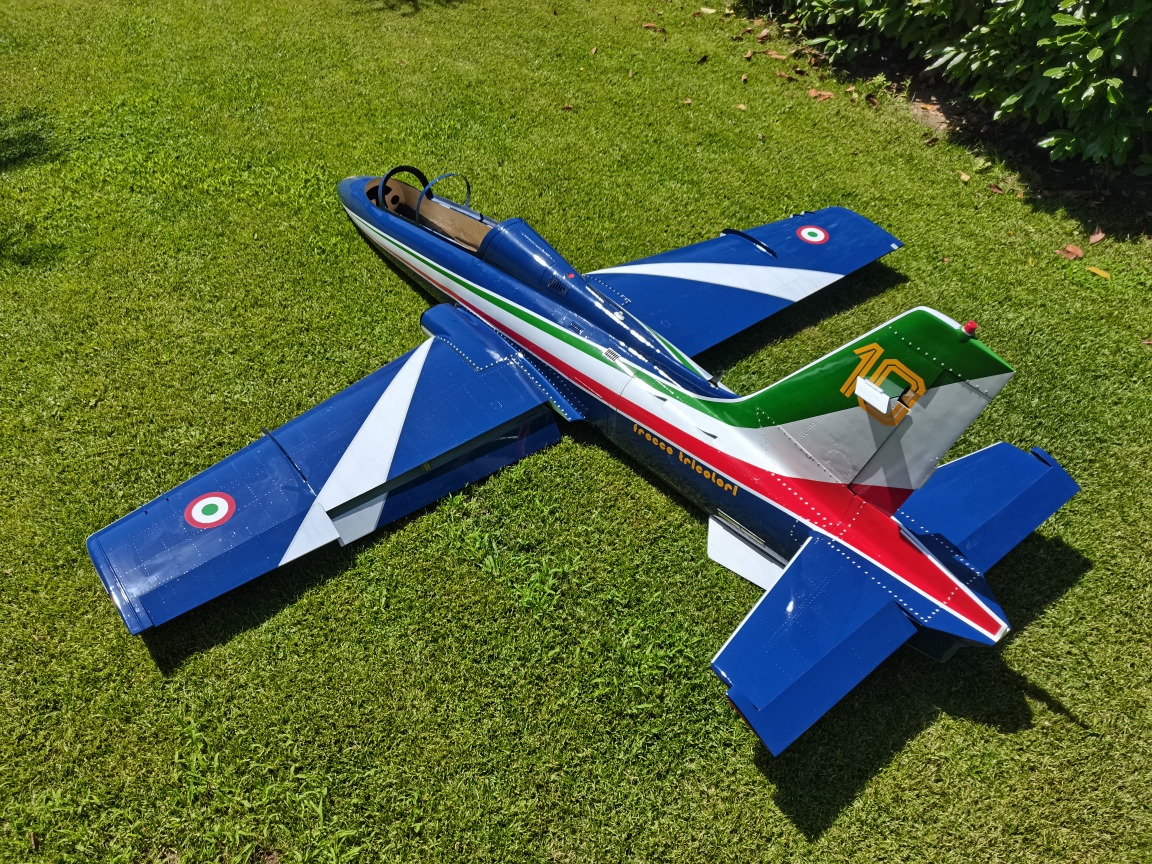

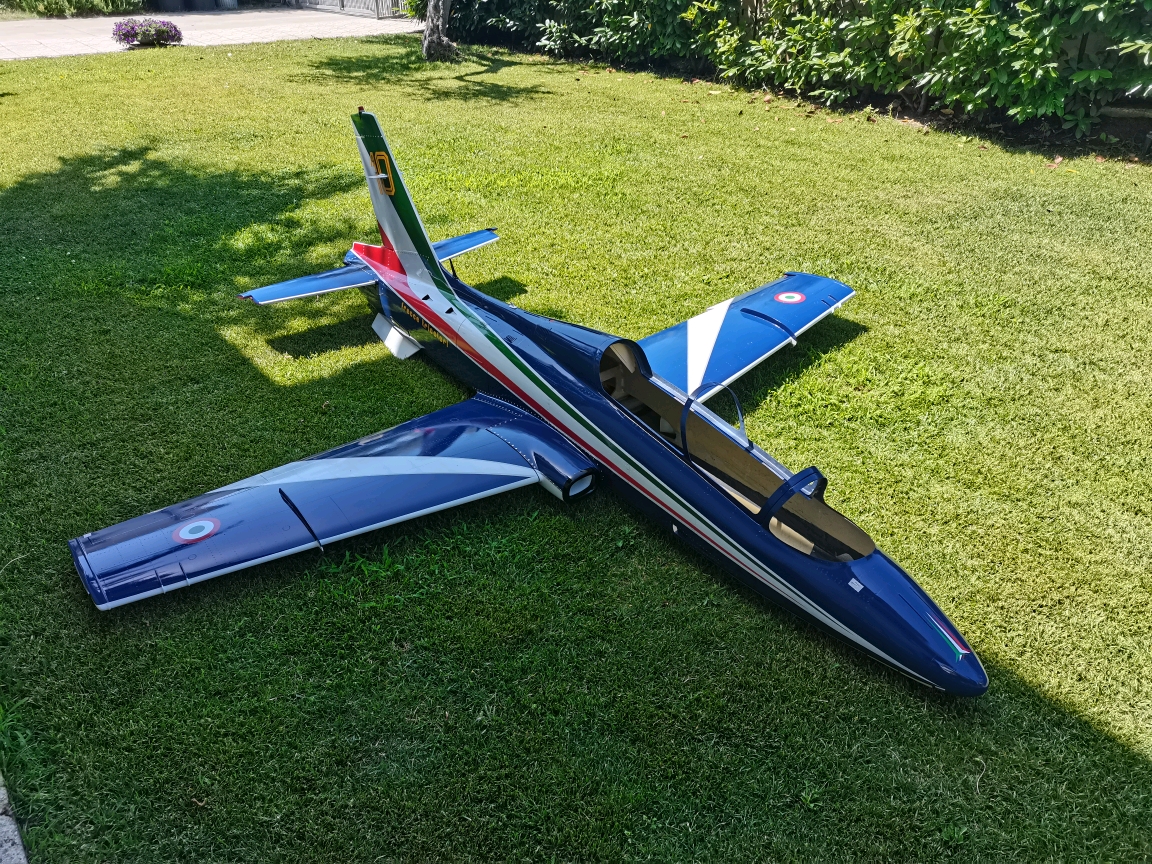

EURO 3500,00 (price ex VAT) PAINTED IN FRECCE TRICOLORI SCHEME
EURO 3500,00 (price ex VAT) PAINTED IN DUBAI AEROBATIC TEAM SCHEME
EURO 3000,00 (price ex VAT) PAINTED IN GREY SCHEME
EURO 2500,00 NOT PAINTED (price ex VAT)(ready to paint with flap,elevator,ailerons,rudder
and all
wood part installed)
SCALE ELECTRIC LANDING GEAR (Complete set retracts+legs+wheels with
electric
brakes) EURO 1200,00 (price ex VAT)
Only legs with wheels EURO 700,00 (price ex VAT)
Dual wall Exhaust pipe for 160/200
Chinese EURO 150,00 (price ex VAT)
German EURO 250,00 (price ex VAT)
Scale Cockpit EURO 450,00 (price ex VAT)
ALL PRICES EX VAT
ELECTRONIC CONTROL UNIT INCLUDED
IN THE LANDING SET
FEATURES:
- CONTROL LANDING GEAR UP/DOWN
- MAIN ELECTRIC BRAKES
- GEAR DOORS(SERVOS OR AIR VALVE CAN BE INSTALLED)
- WORK WITH 2 CELLS LIPO BATTERY
- FULLY PROGRAMMABLE
SCALE COCKPIT |
SCALE COCKPIT |
SCALE MAIN GEAR AND WHEEL |
SCALE NOSE GEAR AND WHEEL
|
SCALE TIRE |
GEAR DOORS
|
GEAR DOOR
|
MAIN GEAR DOOR
|
RUDDER CONTROL
|
TURBINE ACCESS VANE |
SCALE PARTS
|
TURBINE SUPPORT
|
SCALE PARTS
|
INTERNAL MAIN FUSELAGE
|
|
NOSE RETRACT SUPPORT
|
THRUST TUBE SUPPORT IN THE REAR FUSELAGE |
REMOVABLE RUDDER WITH CARBON TUBE |
REMOVABLE ELEVATOR WITH CARBON TIBE |
| |
|
MAIN FUSELAGE GREY VERSION
REAR FUSELAGE GREY VERSION

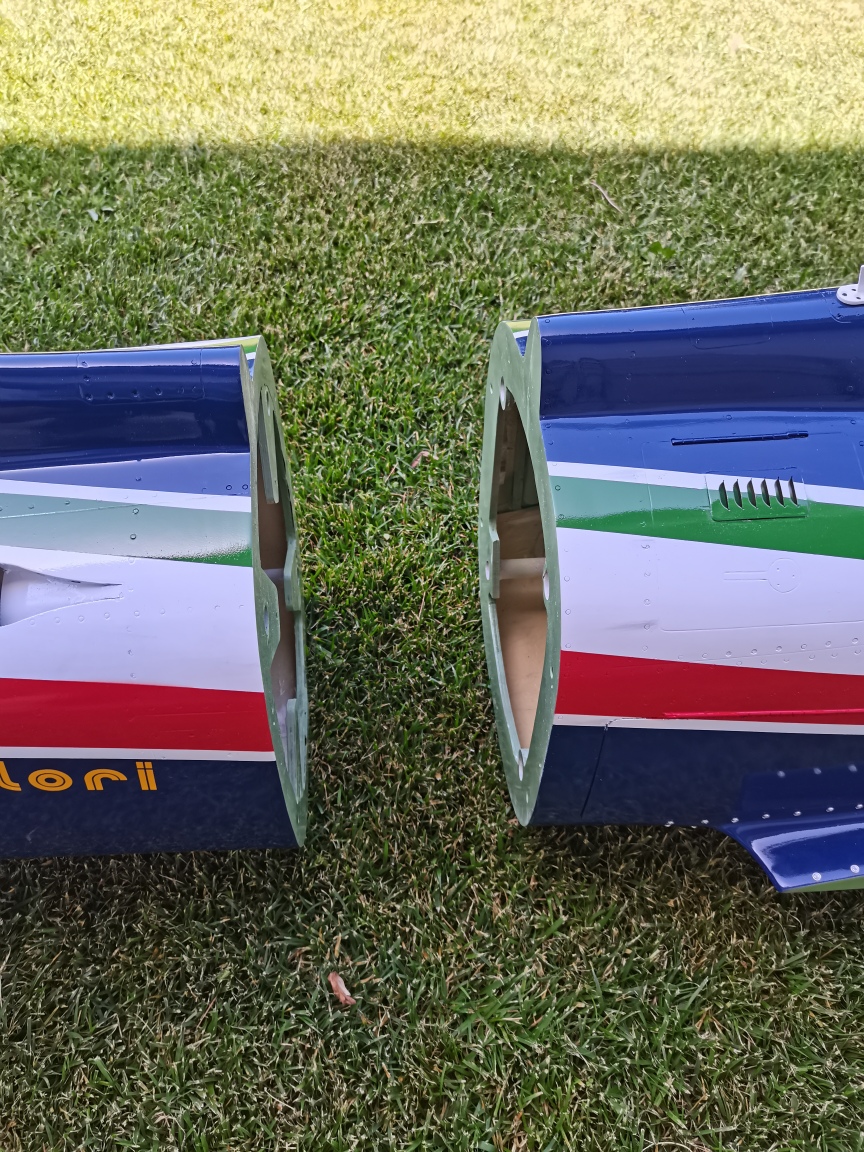

TWO PARTS FUSELAGE EASY TO ASSEMBLE
REMOVABLE RUDDER
FULL FLAP
